DL-P 06-100/T

DL-P 06-100/T

DL-P 06-100/T
  • quick mounting
  • UV-resistant
  • high impact ABS plastic

MED certification
Notified Body No.: 0098
Certificate No.: MEDB0000AMS

ic audio GmbH, Boehringerstraße 14a,
D-68307 Mannheim, Germany

CE-Symbol according to 93/68EWG

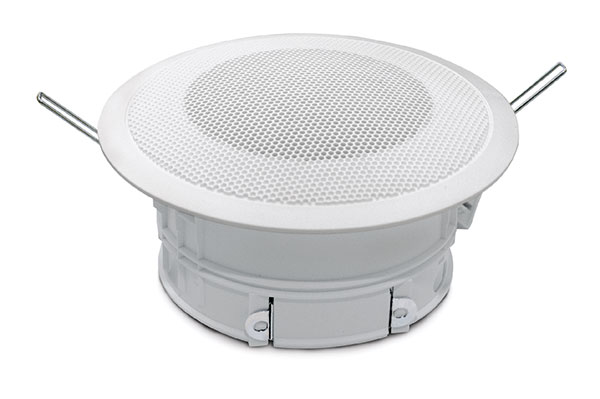

The 6W powered speaker is equipped with a 100mm full-range loudspeaker and a 100V transformer with 3 power adjustments. The impact-resistant ABS housing (UL 94-HB) in RAL 9010 guarantees long-term stability. Quick and easy mounting with spring clamps and short tension distance.

The speaker is protected by the high protection class IP 44 against the risks of environmental influences.

The speaker is connected by a 2-pin push-clamp.

This speaker is suitable for a ceiling strength of about 3 – 40 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately.

ic audio logo

DL-P 06-100/T
Product DL-P 06-100/T
Artikel Nr. 10222023

Acoustics
Power 6/3/1,5 W
Frequency Range 131 - 18.800 Hz
Frequency Response 97 - 21.500 Hz
SPL 1W/1m, peak 100,7 dB
SPL Pmax/1m, peak 108,5 dB
ic audio logo

DL-P 06-100/T

Connections and Housing
Connector 2-pin push clamp
Temperature Range -20 / +80 °C
Dimensions 150x93 mm
Weight (net) 0,58 kg
Ceiling Cut-out 126 mm
Colour RAL 9010
Mounting spring clamp
IP Rating IP44

Certification

Product Attributes
ic audio logo

DL-P 06-100/T

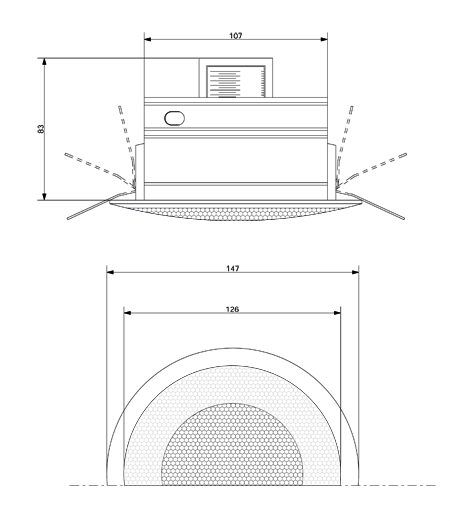

Technical Drawing

ic audio logo

DL-P 06-100/T

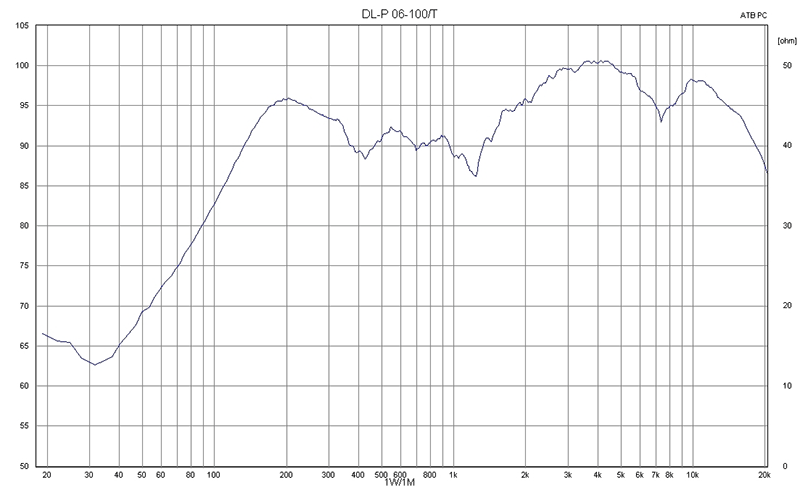

Frequency Response Diagram

Sensitivity
ic audio logo

DL-P 06-100/T

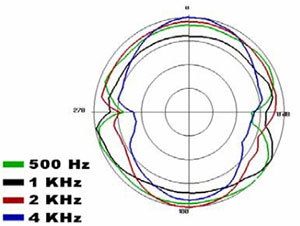

Isobar

ic audio logo

DL-P 06-100/T
ic audio loudspeakers are tested and classified according to the IEC standard 60529 (degree of protection by enclosure) against the penetration of foreign objects and moisture. The classification is conforming to standards through characterization with a fixed code. This code consists of the letters IP (International Protection) followed by two digits. The first digit indicates the degree of protection against dust and the second digit the degree of protection against water. Please note that the testing of the products has been carried out in laboratory conditions which are not always 100% comparable with the conditions of different installation environments. This protection can be reduced due to normal wear and tear depending on the installation environment.
RoHS compliant (2011/65/EU)
The IP rating specified is based on ic audio test results, not on CNBOP-PIB test results. Certification only verifies the minimum requirements for EN54-24 compliance.
