ic audio logo

MX-AMP 120E

MX-AMP 120E

MX-AMP 120E MX-AMP 120E
  • 24V emergency power supply
  • slim housing (2U)
  • best value for money

EN 54-24:2008
:
:

ic audio GmbH, Boehringerstraße 14a,
D-68307 Mannheim, Germany

CE-Symbol gemäß Richtlinie 93/68EWG

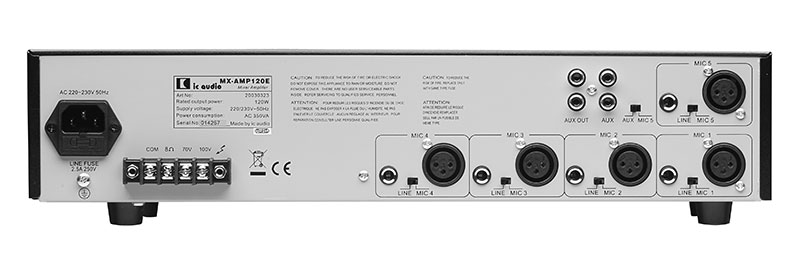

The mixer amplifier MX-AMP 120E offers 5 XLR-Inputs which may be used for connecting signal sources such as Microphones or a CD-Player, e.g. By changing the position of the LINE/MIC-switch on the rear side you select the operation mode of each input. Furthermore you can connect an additional source (Input and Output) by cinch.

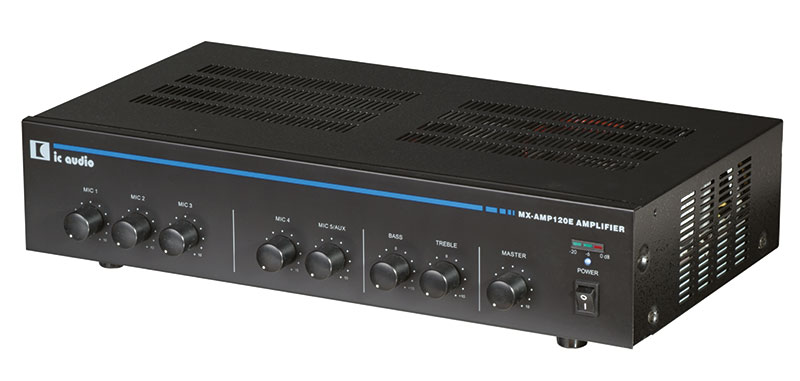

Besides the precise volume control for each input channel the MX-AMP 120E offer fine adjustment of bass and treble. To connect the speakers you can choose between the 70 Volt, 100 Volt and 8 Ohm outputs. The blue power-LED and a three digit LED-VUmeter are informing you about the operational readiness and the output level of the 120 Watt powered mixer amplifier.

The MX-AMP 120E is the low cost solution by obtaining the high quality level.

ic audio logo

MX-AMP 120E
Product MX-AMP 120E
Artikel Nr. 20030323

Acoustics
ic audio logo

MX-AMP 120E

Connections and Housing
Dimensions 88x430x260 mm
Weight (net) 8,20 kg
Colour black

Certification

Product Attributes
ic audio logo

MX-AMP 120E
ic audio loudspeakers are tested and classified according to the IEC standard 60529 (degree of protection by enclosure) against the penetration of foreign objects and moisture. The classification is conforming to standards through characterization with a fixed code. This code consists of the letters IP (International Protection) followed by two digits. The first digit indicates the degree of protection against dust and the second digit the degree of protection against water. Please note that the testing of the products has been carried out in laboratory conditions which are not always 100% comparable with the conditions of different installation environments. This protection can be reduced due to normal wear and tear depending on the installation environment.
RoHS compliant (2011/65/EU)
The IP rating specified is based on ic audio test results, not on CNBOP-PIB test results. Certification only verifies the minimum requirements for EN54-24 compliance.
