MT-AMP 240

MT-AMP 240

MT-AMP 240 MT-AMP 240
  • 24V emergency power supply
  • priority settings
  • slim housing (2U)

EN 54-24:2008
:
:

ic audio GmbH, Boehringerstraße 14a,
D-68307 Mannheim, Germany

CE-Symbol gemäß Richtlinie 93/68EWG

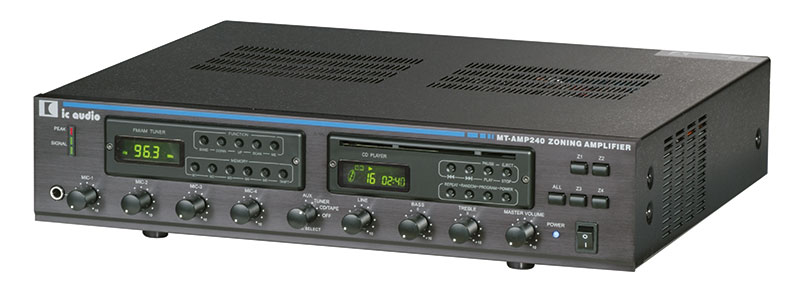

The mixer amplifier MT-AMP 240 is ideal to be connnected to up to four microphones (XLR) and one external line source (cinch). The MT-AMP 240 can be equipped with the plugin modules CD-Player and Tuner. The plugin modules will be installed by ic audio, of course. Both plug-in modules are available separately so you can upgrade the MT-AMP 240 easily. Powered with 240W this mixer amplifier is the optimum »All-in-one-solution« for small up to medium-sized projects.

General announcements or alerts can be adressed by push-buttons to four zones. Besides the precise volume control for each input channel the MT-AMP 240 offers fine adjustment of bass and treble. To connect the speakers you can choose between 25 Volt, 70 Volt, 100 Volt and 8O hm outputs. A blue power-LED and a three digit LED-VU-meter are informing you about the operational readiness and the output level of the 240 Watt powered mixer amplifier.

The MIC1 - input is equipped with a vox function, which mutes all other inputs as the connected microphone is being spoken to. Via internal jumpers phantom power (18V) can be added to the MIC - inputs. The MT-AMP 240 can be supplied from a 24 V emergency power source.

ic audio logo

MT-AMP 240
Product MT-AMP 240
Artikel Nr. 20030312

Acoustics
ic audio logo

MT-AMP 240

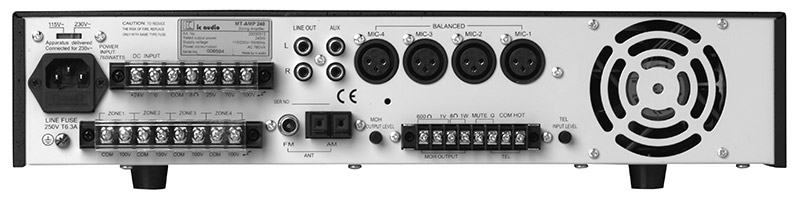

Connections and Housing
Dimensions 100x430x380 mm
Weight (net) 13,30 kg
Colour black

Certification

Product Attributes
ic audio logo

MT-AMP 240
ic audio loudspeakers are tested and classified according to the IEC standard 60529 (degree of protection by enclosure) against the penetration of foreign objects and moisture. The classification is conforming to standards through characterization with a fixed code. This code consists of the letters IP (International Protection) followed by two digits. The first digit indicates the degree of protection against dust and the second digit the degree of protection against water. Please note that the testing of the products has been carried out in laboratory conditions which are not always 100% comparable with the conditions of different installation environments. This protection can be reduced due to normal wear and tear depending on the installation environment.
RoHS compliant (2011/65/EU)
The IP rating specified is based on ic audio test results, not on CNBOP-PIB test results. Certification only verifies the minimum requirements for EN54-24 compliance.
