AMP 4x120

AMP 4x120

AMP 4x120 AMP 4x120
  • 24V emergency power supply
  • 4 channels
  • 230V and 115V operation

EN 54-24:2008
:
:

ic audio GmbH, Boehringerstraße 14a,
D-68307 Mannheim, Germany

CE-Symbol gemäß Richtlinie 93/68EWG

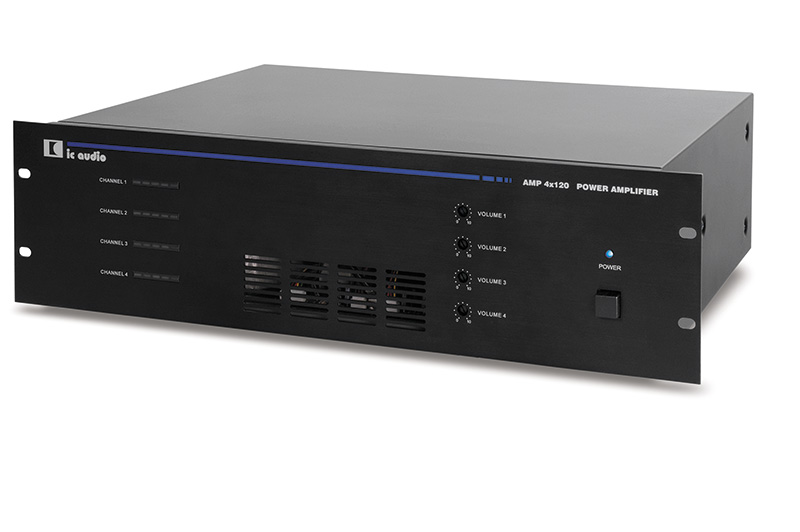

The 4-channel power amplifier AMP 4 x 120 is specially designed for the application in public buildings, schools or coliseums.

The amplifier with 4 x 120 Watt is protected against overload and short circuit. A fan provides for thermal stability. The output level is shown by a LEDVU meter. With the speaker outputs of 70 Volt, 100 Volt and 8 Ohm the AMP 4 x 120 can be recommended for all kinds of installation condition.

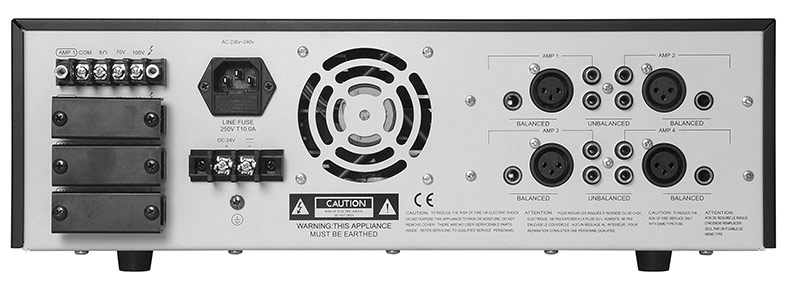

1x XLR, 1 x 1⁄4 inch jack and 2 x cinch connectors for incoming signals are available for each channel. The 19-inch housing (3U) allows for space-saving mounting in racks.

ic audio logo

AMP 4x120

Technical Data (Electrical)

Description AMP 4x120

Technical Data (Mechanical)

Dimensions 133x483x380 mm
Weight (net) 25,70 kg
Colour black

Product Attributes

ic audio logo

AMP 4x120

ic audio loudspeakers are tested and classified according to the IEC standard 60529 (degree of protection by enclosure) against the penetration of foreign objects and moisture. The classification is conforming to standards through characterization with a fixed code. This code consists of the letters IP (International Protection) followed by two digits. The first digit indicates the degree of protection against dust and the second digit the degree of protection against water. Please note that the testing of the products has been carried out in laboratory conditions which are not always 100% comparable with the conditions of different installation environments. This protection can be reduced due to normal wear and tear depending on the installation environment.
RoHS compliant (2011/65/EU)
The IP rating specified is based on ic audio test results, not on CNBOP-PIB test results. Certification only verifies the minimum requirements for EN54-24 compliance.
