  • frameless design
  • suitable for very thin ceilings
  • WAGO 221 connector

EN 54-24:2008
Ref. Nr.: 001-35
ID-Code: SAA-LS35
1438-CPR-xxxx

ic audio GmbH, Boehringerstraße 14a,
D-68307 Mannheim, Germany

CE-Symbol gemäß Richtlinie 93/68EWG

The DL-SE-AB 06-200/T-EN54 is designed with two independent speakers and 100V transformers to enable the economic operation of two separate speaker lines (A/B lines) for the highest security demands. In case of a failure of one speaker line, the redundancy of the speakers and the transformers will guarantee unimpaired function.

The 2x6W powered speaker is equipped with two full-range loudspeakers and two 100V transformers with 3 power adjustments, each. The powder-coated metal in RAL 9016 guarantees long-term stability. For additional reliability, the speaker is impregnated against wetness. The speaker is also secured with protection class IP 21C against the security risks of environmental influences. Fast and easy installation by WAGO 221 connector and strong spring clamps with protective caps for vibration damping.

The connection cables can be fed to the loudspeaker via the rubber grommets in the fire dome.

ic audio logo

DL-SE-AB 06-200/T-EN54

Technical Data (Electrical)
Description DL-SE-AB 06-200/T-EN54
Power 2x 6/3 /1.5 W
Impedance (100V) 2x 1667/3333 / 6667 ohm
Frequency Range 90 ~ 17.000 Hz (single)
100 ~ 19.500 Hz (double)
Frequency Response 80 ~ 20.000 Hz (single)
90 ~ 20.500 Hz (double)
SPL IEC268-5, 1W/1m 86,0 dB
90,0 dB (double)

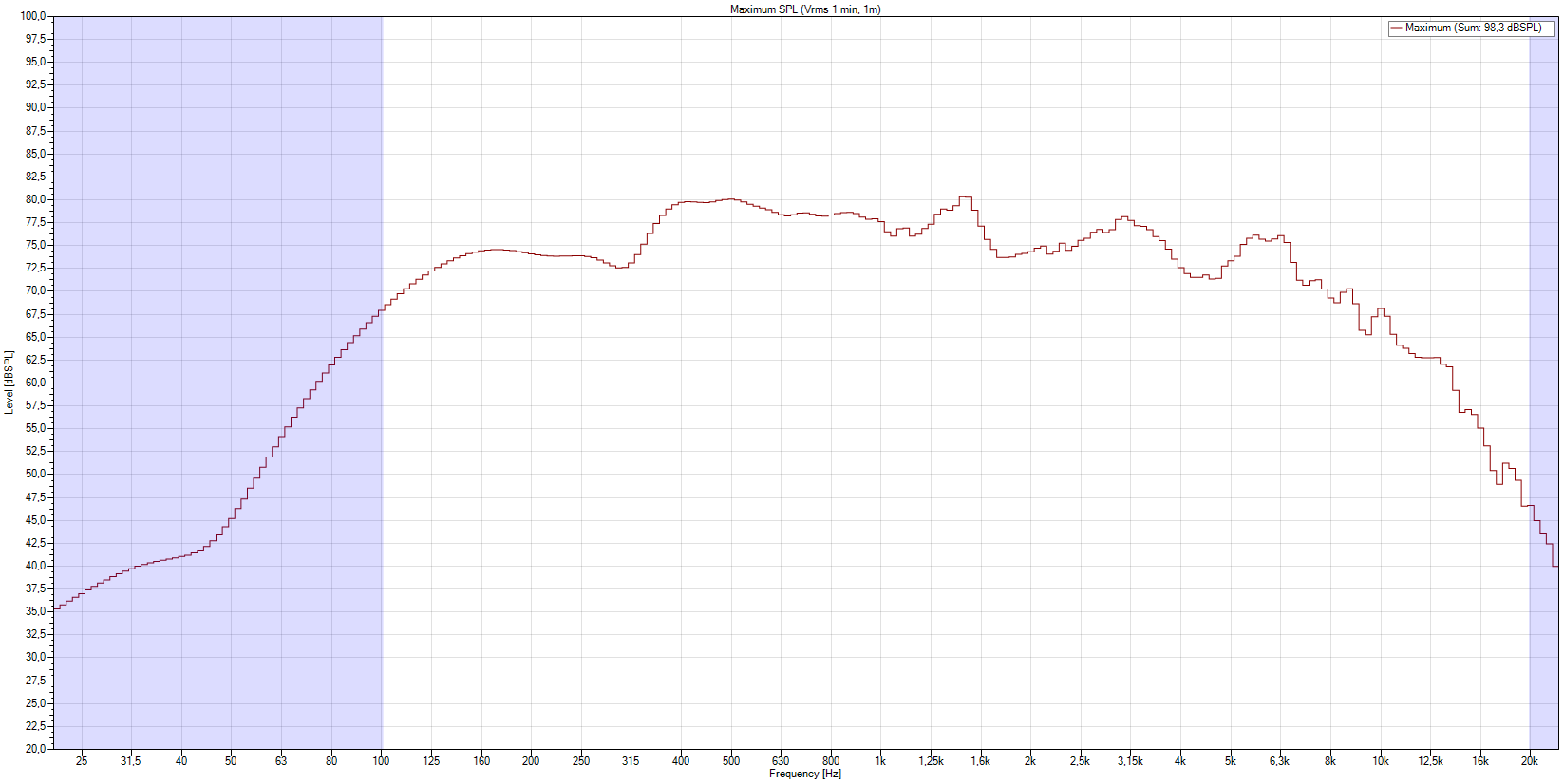

SPL EN54-24, Pmax/4m 80,6 dB (single)
86,3 dB (double)

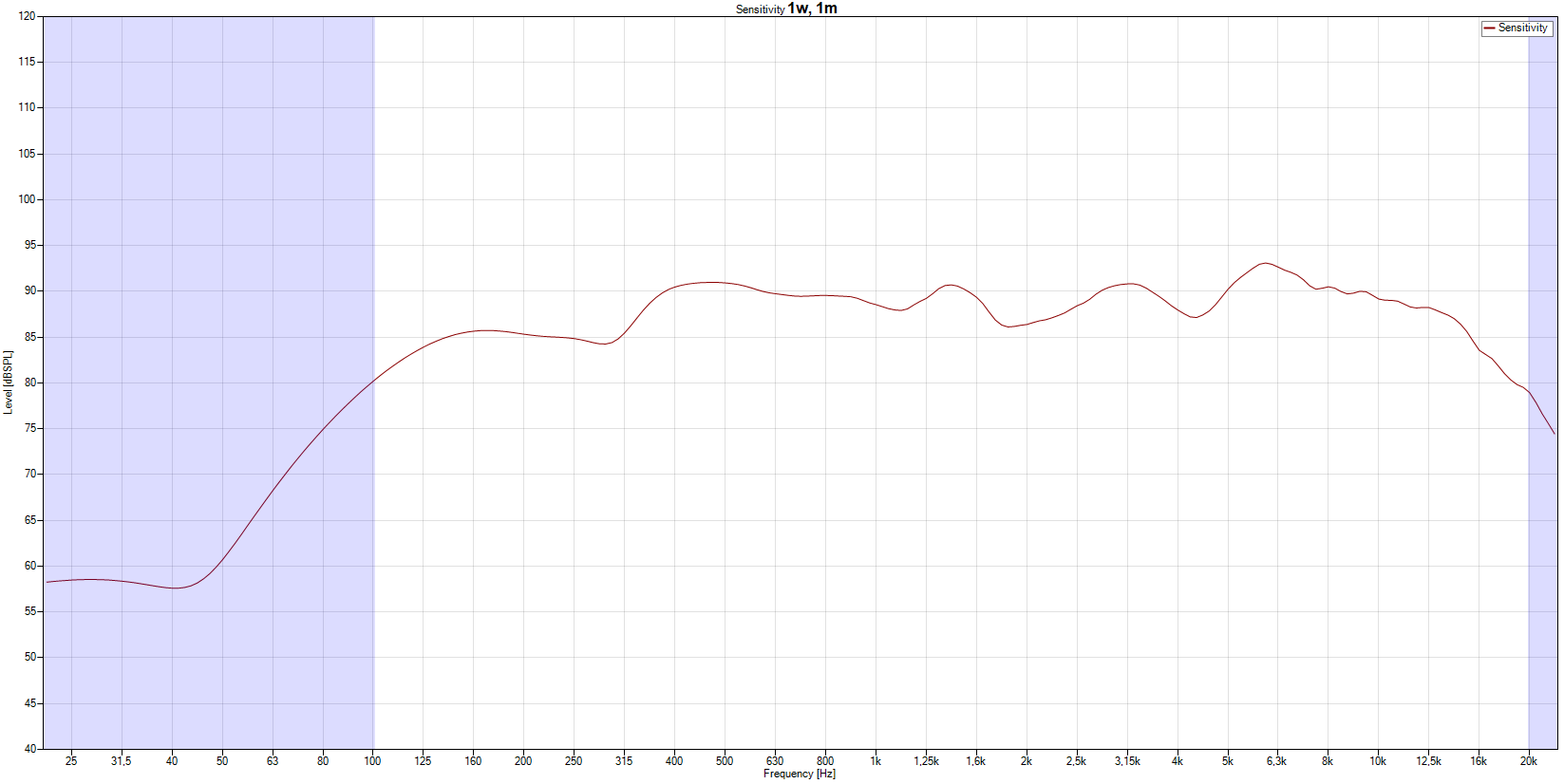

Sensitivity EN54-24, 1W/4m 73,0 dB (single)
75,7 dB (double)
Sensitivity EN54-24, 1W/1m 85,0 dB (single)
87,7 dB (double)

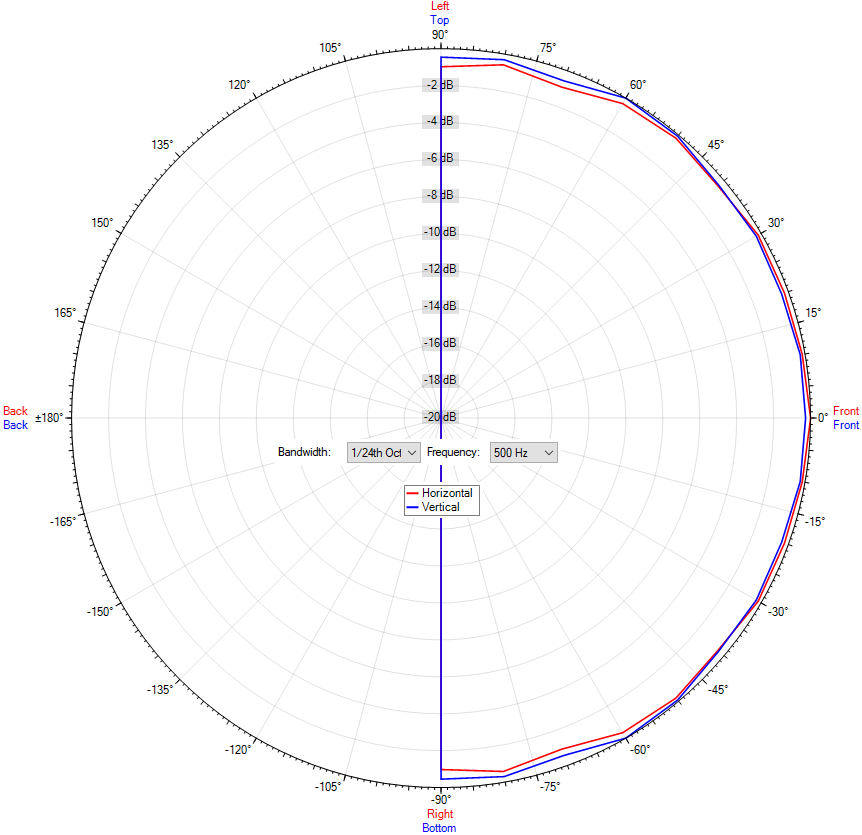

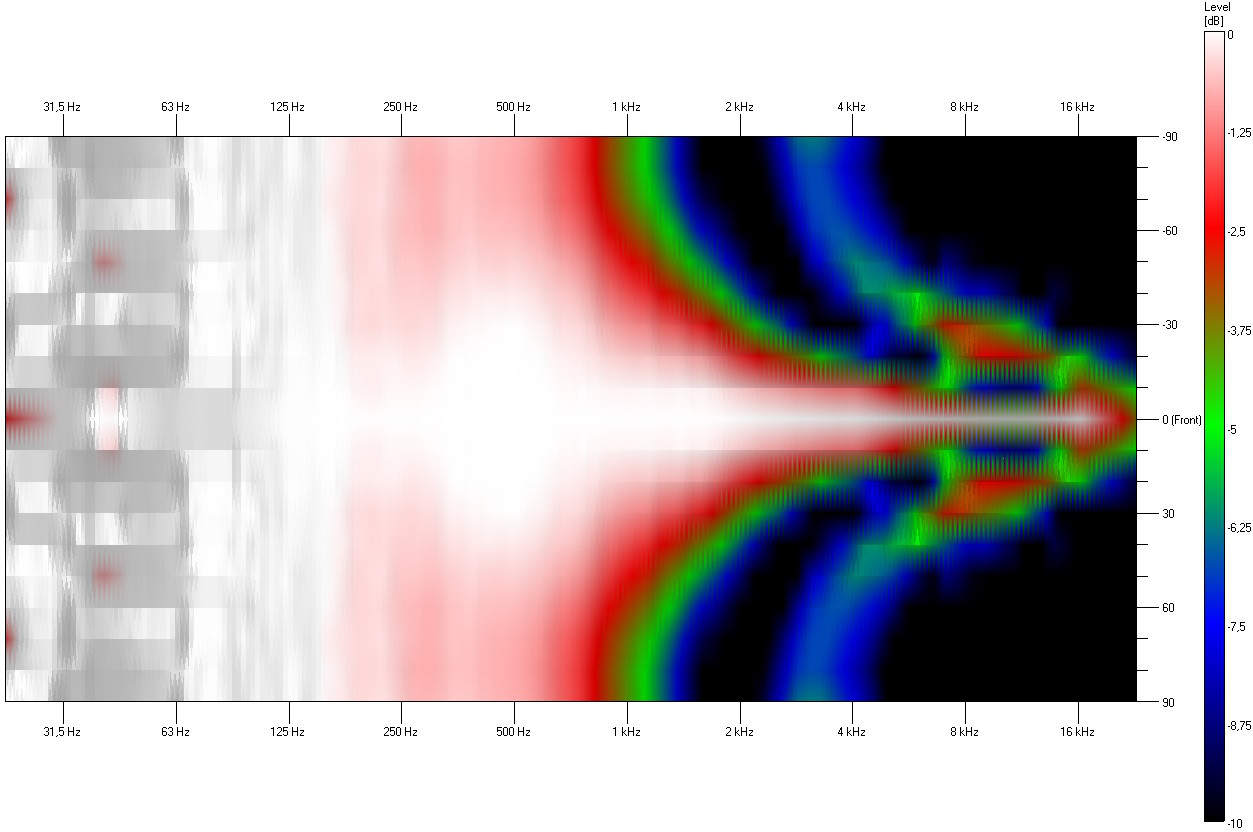

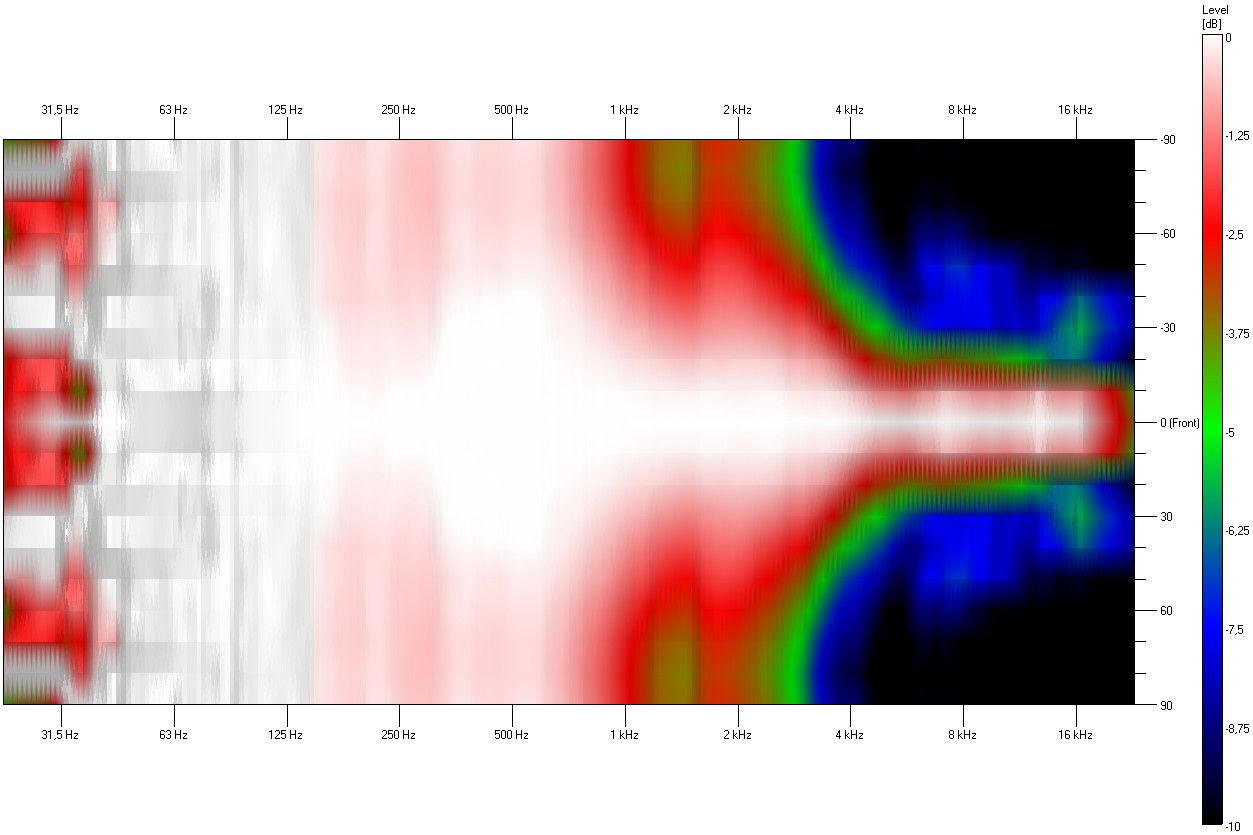

Dispersion -6dB, 500Hz 180° (h) s/d
180° (v) s/d

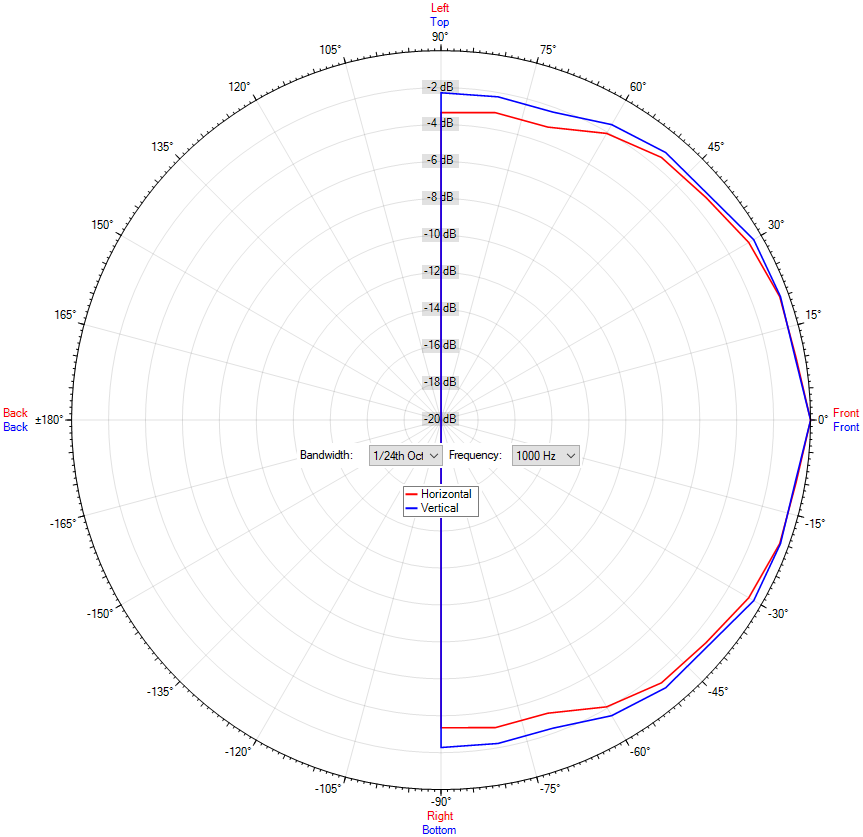

Dispersion -6dB, 1KHz 180° (h) single
180° (v) s/d

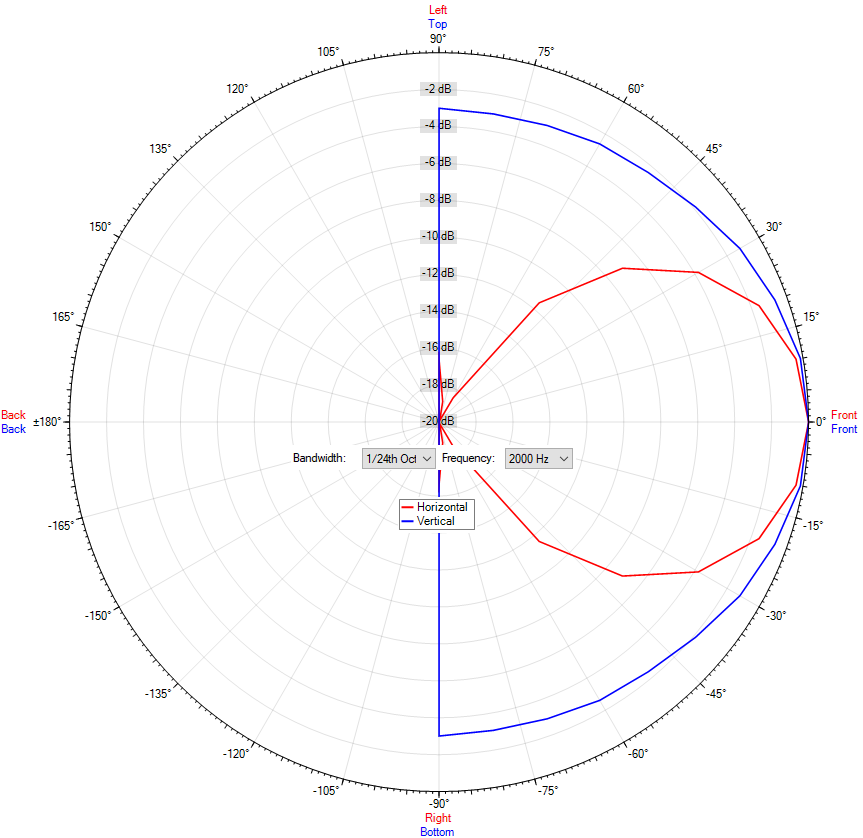

Dispersion -6dB, 2KHz 180° (h)(v) single
84° (h) 187° (v) double

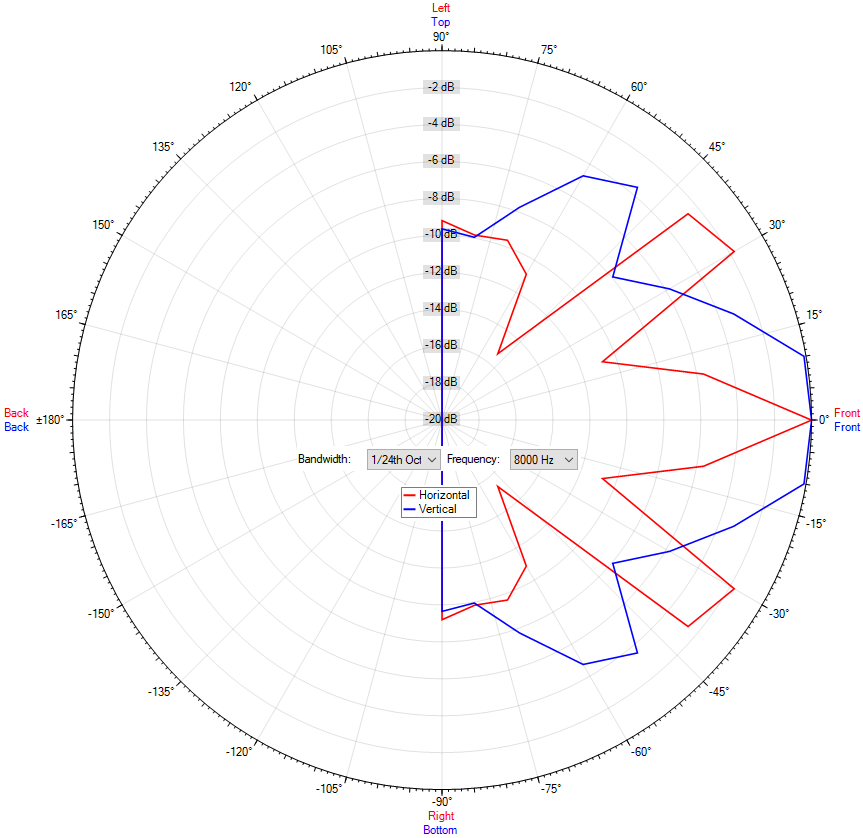

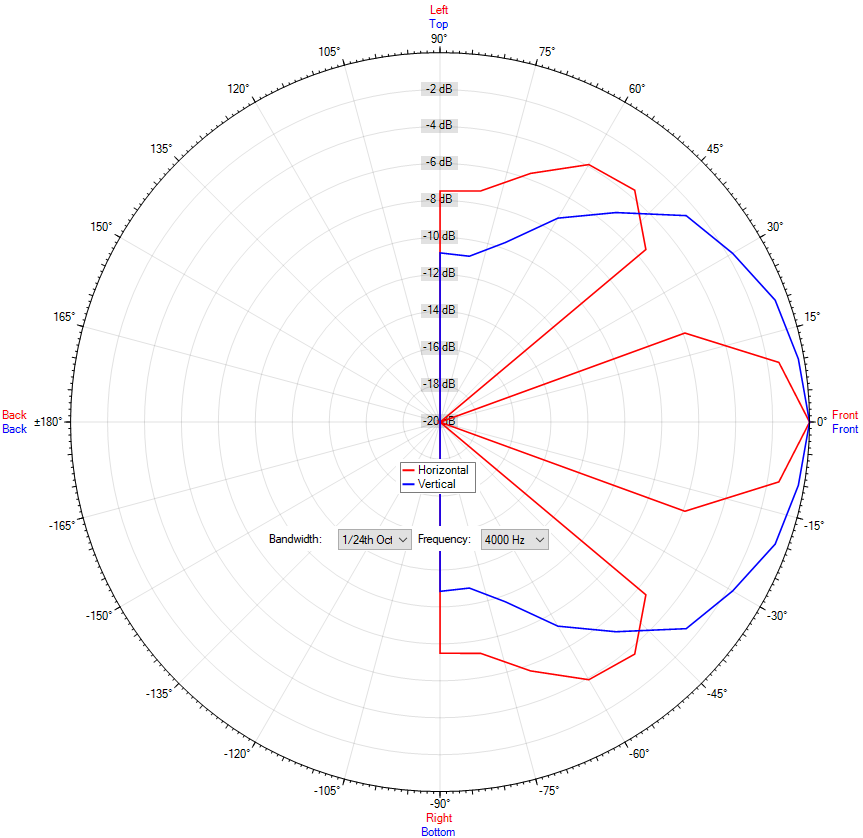

Dispersion -6dB, 4KHz 134° (h) 98° (v) single
41° (h) 97° (v) double

Technical Data (Mechanical)

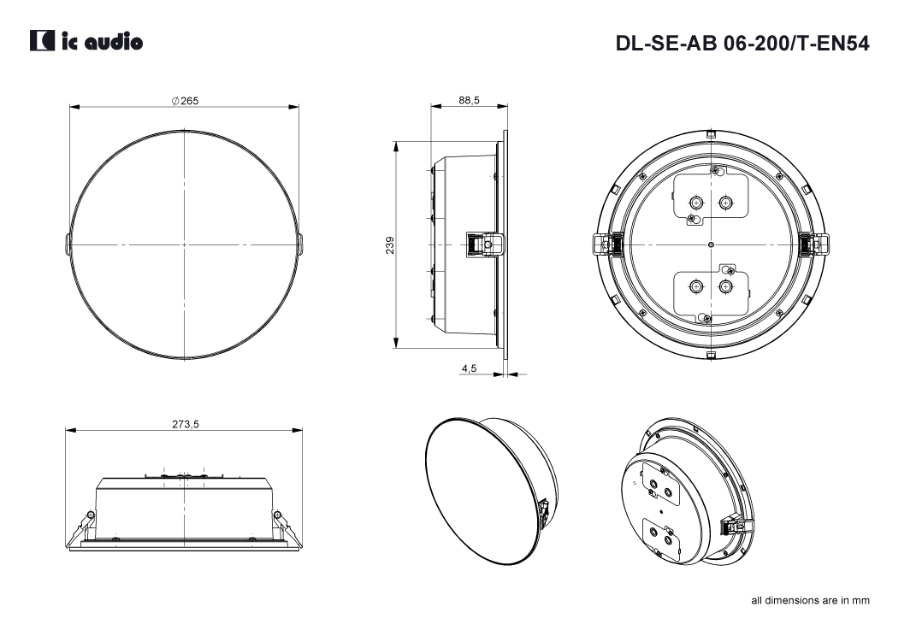

Dimensions 265x85 mm
