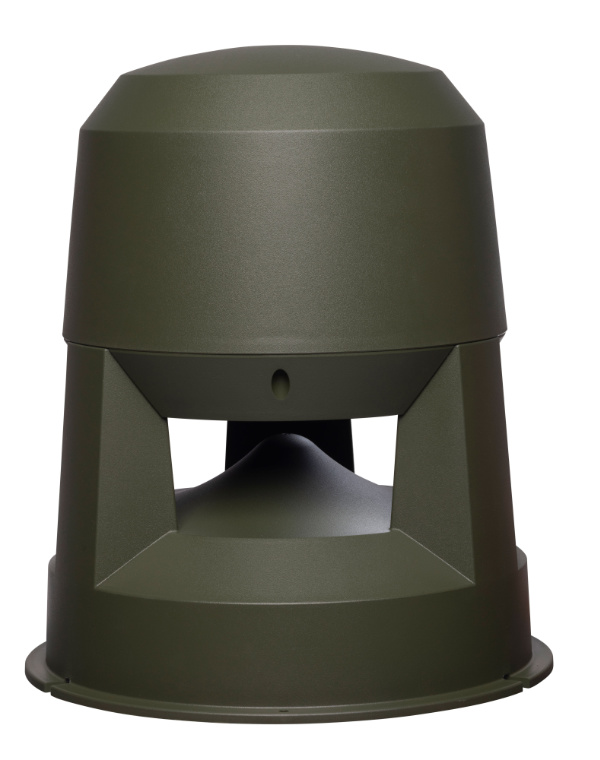

DA-SG 80-200/T plus green-EN54

4 260590 185921

2-Way outdoor speaker for Voice Alarm, 80W power, certified EN 54-24

Mechanical Data

Colour	RAL 6003
Dimensions	380x443 mm
Weight (net)	6,31 kg
Power	80/40/20/10 W
Connector	5-pin ceramic block
Mounting	surface mounted or set in ground

4 260590 185921

Mounting Instruction

Select a level and dry surface for your speakers.
If you want to place the speaker on the surface, prepare suitable fixing material.
If you want the speaker dug into the ground, prepare a sufficiently cast hole.
Connect the speaker cable to the 100V and COM terminals before you place the speaker. Select a different power tapping and choose between music and voice alarm tuning at the rotary switches next to the speaker grille if necessary.
Mount the speaker or dig it in.
