Operation, Installation and Maintenance Manual
DL-P 10-165/T SWF MED
barcode 4 260590 186706

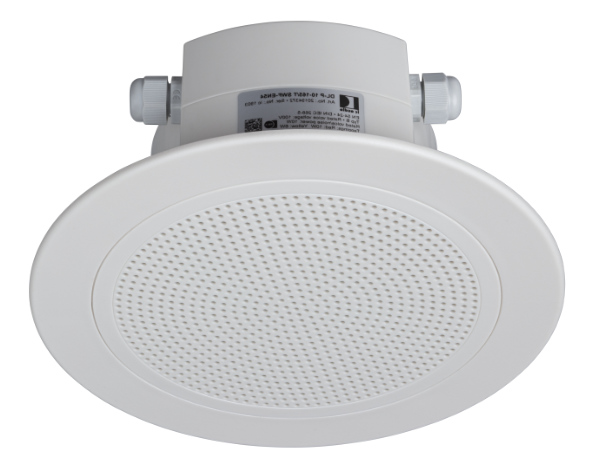

Ceiling speaker for marine application, 10W power, certified MED/1.44b

Mechanical Data
Colour RAL 9016
Dimensions 220x82 mm
Ceiling Cut-out 175 mm
Weight (net) 1,20 kg
Power 10/6/3/1,5 W
Connector 5-pin terminal
Terminal Diameter 3,2 mm
Maximum Cable Passage 8 mm²
Mounting Quick fit mounting
Environmental Category: Category A (IEC 60945 - Protected Equipment)
0098/2026 (EU) 2026/1434, item No. MED/1.44b. SOLAS 1974 as
amended, Regulation II-2/12,21,22, III/4, 6 & X/3, LSA Code VII,
HSC Code 4,8, IMO MSC.1/Circ. 808, 1369/Add.1
suitable for:
  • Cargo ships
  • Passenger ships without SRtP
  • Passenger ships with SRtP
Compass Safe Distance: 2.70 m (standard compass), 1.75 m (steering and emergency compass)
to prevent magnetic interference with navigational instruments
DL-P 10-165/T SWF MED
barcode 4 260590 186706
Mounting Instruction
  1. Create the necessary ceiling cut-out and check the installation depth.
  2. Insert the loudspeaker cable through the cable entry of the previously opened connector housing.
  3. Connect the loudspeaker cable to the terminals 100V and COM.
    If necessary, select a different power tapping.
  4. Close the housing again.
  5. Tension the springs upwards and insert the speaker into the ceiling cut-out with the springs first.
  6. Carefully relieve the tension on the springs until the speaker is centred in the ceiling cut-out.
Cable lug
Power Tappings
black red yellow blue green
COM 10 6 3 1,5
An integrated thermal fuse automatically disconnects the loudspeaker driver in the event of excessive heat (e.g. due to fire or driver failure), preventing a short circuit across the 100V line. Do not bypass or remove the thermal fuse under any circumstances. Verify the integrity of the connection cable during periodic maintenance.
