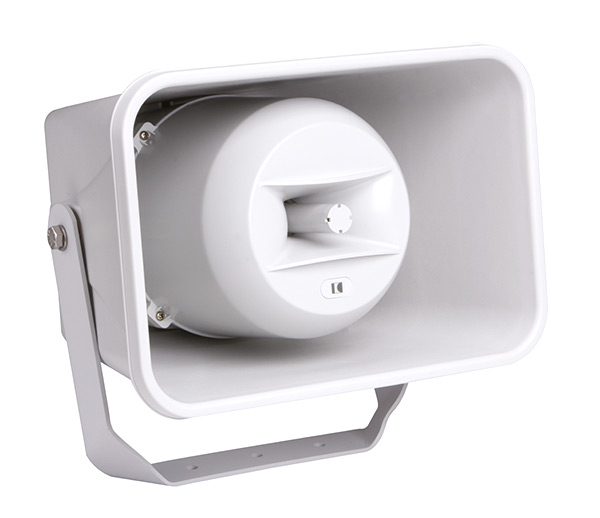

DK-MH 30/T plus

DK-MH 30/T plus

DK-MH 30/T plus
  • superb sound quality
  • weather proof
  • balanced frequency range

EN 54-24:2008
:
:

ic audio GmbH, Boehringerstraße 14a,
D-68307 Mannheim, Germany

CE-Symbol gemäß Richtlinie 93/68EWG

The 30W powered 2-way speaker is equipped with a 100V line transformer with 4 power adjustments. The impact-resistant ABS housing in RAL 7035 guarantees long-term stability.

The speaker is secured with the high protection class IP 66 against the security risks of environmental influences. Mounting by stainless aluminum universal mount. The speaker is connected by a sturdy 6-pin screw terminal.

Optionally available is a mast bracket (MB) for about 200mm mast diameter.

ic audio logo

DK-MH 30/T plus

Technical Data (Electrical)
Description DK-MH 30/T plus
Power 30/15/7,5/3,75 W
Frequency Range 237 - 21.100 Hz
Frequency Response 65 - 24.000 Hz

Technical Data (Mechanical)
Dimensions 370x255x291 mm
IP Rating IP66
Weight (net) 4,50 kg
Temperature Range -20 / +90 °C
Mounting Universal bracket
Connector 6-pin screw terminal
Colour RAL 7035

Product Attributes
ic audio logo

DK-MH 30/T plus

Technical Drawing

ic audio logo

DK-MH 30/T plus

Frequency Response Diagram

Sensitivity
ic audio logo

DK-MH 30/T plus

Isobar

ic audio logo

DK-MH 30/T plus
ic audio loudspeakers are tested and classified according to the IEC standard 60529 (degree of protection by enclosure) against the penetration of foreign objects and moisture. The classification is conforming to standards through characterization with a fixed code. This code consists of the letters IP (International Protection) followed by two digits. The first digit indicates the degree of protection against dust and the second digit the degree of protection against water. Please note that the testing of the products has been carried out in laboratory conditions which are not always 100% comparable with the conditions of different installation environments. This protection can be reduced due to normal wear and tear depending on the installation environment.
RoHS compliant (2011/65/EU)
The IP rating specified is based on ic audio test results, not on CNBOP-PIB test results. Certification only verifies the minimum requirements for EN54-24 compliance.
