DL-BR 15-100/T plus

DL-BR 15-100/T plus

DL-BR 15-100/T plus DL-BR 15-100/T plus
  • excellent sound
  • strain relief
  • easy power adjustment

EN 54-24:2008
:
:

ic audio GmbH, Boehringerstraße 14a,
D-68307 Mannheim, Germany

CE-Symbol gemäß Richtlinie 93/68EWG

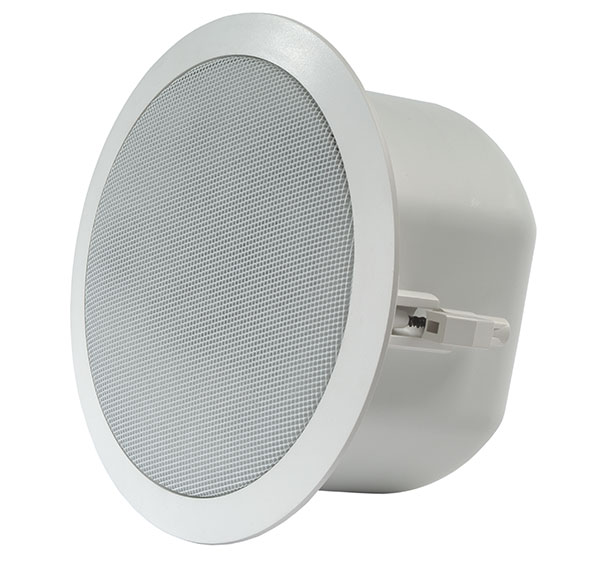

The 15W speaker is equipped with a powerful 100mm 2-way system and a 100V line transformer with 4 power adjustments. Also, the low impedance operation with 8 ohm is possible. The power adjustment can be made later on the front even after installation of the speaker. The impact-resistant ABS housing in RAL 9010 guarantees long-term stability.

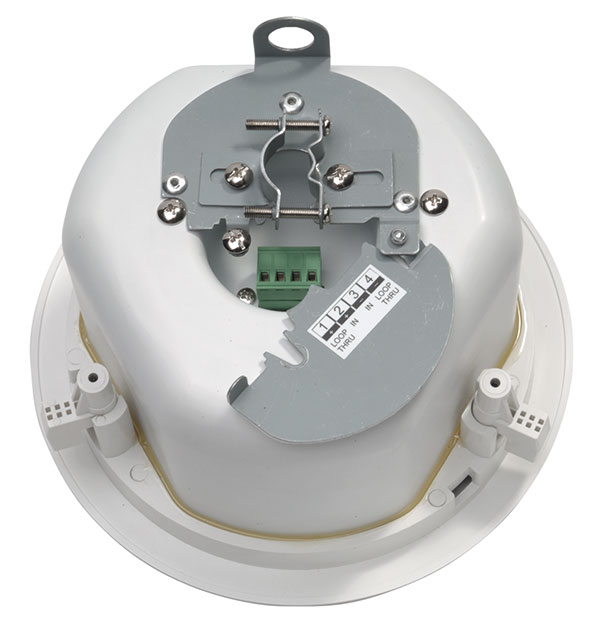

Quick and easy mounting with screws. The connection is easily done by a stable 4-pin screw terminal.

Perfectly suitable for installations where high sound quality is needed.

This speaker is suitable for a ceiling strength of about 1 – 30 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately.

ic audio logo

DL-BR 15-100/T plus

Technical Data (Electrical)
Description DL-BR 15-100/T plus
Power 15/7,5/3,75/1,9 (8) W
Frequency Range 81 - 23.500 Hz
Frequency Response 66 - 23.500 Hz
Please note: Because of many different types of ceiling materials and ceiling strengths we recommend to build in a sample of the speaker to match the requirements accurately.

Technical Data (Mechanical)
Dimensions 190x135 mm
Weight (net) 1,70 kg
Ceiling Cut-out 168 mm
Temperature Range -20 / +80 °C
Mounting Screws
Connector 4-pin screw terminal
Colour RAL 9010

Product Attributes
ic audio logo

DL-BR 15-100/T plus

Technical Drawing

ic audio logo

DL-BR 15-100/T plus

Frequency Response Diagram

Sensitivity
ic audio logo

DL-BR 15-100/T plus

Isobar

ic audio logo

DL-BR 15-100/T plus
ic audio loudspeakers are tested and classified according to the IEC standard 60529 (degree of protection by enclosure) against the penetration of foreign objects and moisture. The classification is conforming to standards through characterization with a fixed code. This code consists of the letters IP (International Protection) followed by two digits. The first digit indicates the degree of protection against dust and the second digit the degree of protection against water. Please note that the testing of the products has been carried out in laboratory conditions which are not always 100% comparable with the conditions of different installation environments. This protection can be reduced due to normal wear and tear depending on the installation environment.
RoHS compliant (2011/65/EU)
The IP rating specified is based on ic audio test results, not on CNBOP-PIB test results. Certification only verifies the minimum requirements for EN54-24 compliance.
