DL 10-165/T

DL 10-165/T

DL 10-165/T
  • quick mounting
  • shock-resistant housing
  • high efficiency

EN 54-24:2008
:
:

ic audio GmbH, Boehringerstraße 14a,
D-68307 Mannheim, Germany

CE-Symbol gemäß Richtlinie 93/68EWG

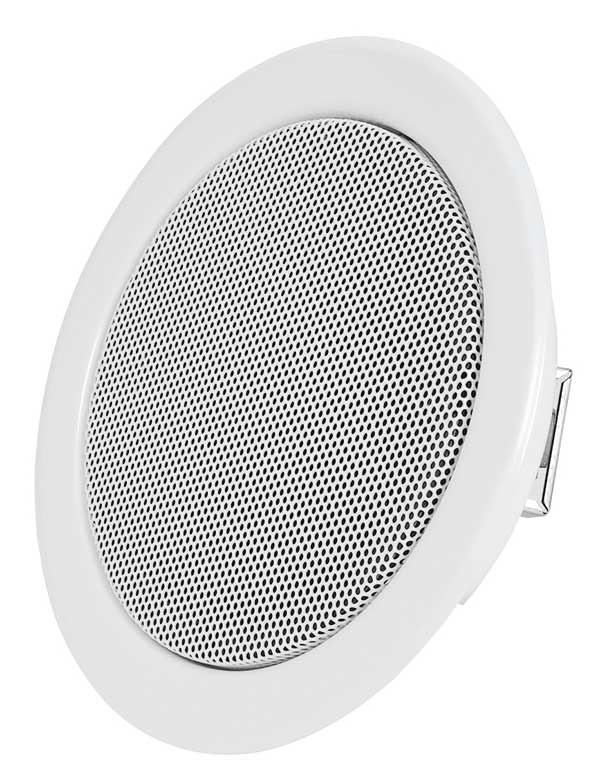

The 10W powered speaker is equipped with a 165mm full-range loudspeaker and a 100V transformer with 3 power adjustments. The powder coated metal similar in RAL 9010 guarantees long-term stability. Quick and easy mounting with spring clamps and short tension distance. The speaker is connected by a 2-pin push-clamp.

Special paint of the speaker in 4-digit RAL- or NCS-colour available at extra cost.

This speaker is suitable for a ceiling strength of about 2 – 45 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately.

ic audio logo

DL 10-165/T

Technical Data (Electrical)
Description DL 10-165/T
Power 10/6/3/1,5 W
Frequency Range 100 - 17.000 Hz
Frequency Response 72 - 24.000 Hz
Please note: Because of many different types of ceiling materials and ceiling strengths we recommend to build in a sample of the speaker to match the requirements accurately.

Technical Data (Mechanical)
Dimensions 220x105 mm
Weight (net) 1,20 kg
Ceiling Cut-out 195 mm
Temperature Range -20 / +80 °C
Mounting Quick fit mounting
Connector 2-pin push clamp
Colour RAL 9010

Product Attributes
ic audio logo

DL 10-165/T

Technical Drawing

ic audio logo

DL 10-165/T

Frequency Response Diagram

Sensitivity
ic audio logo

DL 10-165/T

Isobar

ic audio logo

DL 10-165/T
ic audio loudspeakers are tested and classified according to the IEC standard 60529 (degree of protection by enclosure) against the penetration of foreign objects and moisture. The classification is conforming to standards through characterization with a fixed code. This code consists of the letters IP (International Protection) followed by two digits. The first digit indicates the degree of protection against dust and the second digit the degree of protection against water. Please note that the testing of the products has been carried out in laboratory conditions which are not always 100% comparable with the conditions of different installation environments. This protection can be reduced due to normal wear and tear depending on the installation environment.
RoHS compliant (2011/65/EU)
The IP rating specified is based on ic audio test results, not on CNBOP-PIB test results. Certification only verifies the minimum requirements for EN54-24 compliance.
