MX-AMP 120

MX-AMP 120

MX-AMP 120 MX-AMP 120
  • 24V emergency power supply
  • priority settings
  • slim housing (2U)

EN 54-24:2008
:
:

ic audio GmbH, Boehringerstraße 14a,
D-68307 Mannheim, Germany

CE-Symbol gemäß Richtlinie 93/68EWG

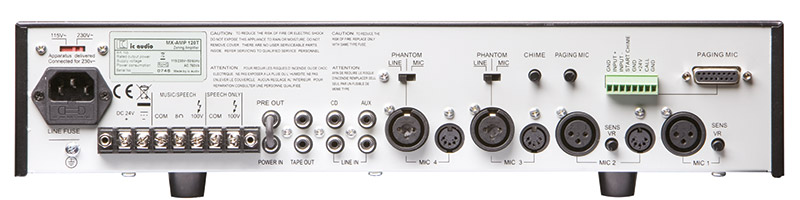

The mixer amplifier MX-AMP 120 is ideal to be connnected to up to four microphones (XLR, DIN, Phone Jacks for 3+4) and two line-sources (phone jacks, switchable CD/AUX). An additional SubD – connector is fitted for the M-E 01 desktop microphones. Besides the precise volume control for each input channel the MX-AMP 120 offer fine adjustment of bass and treble. To connect the speakers you can choose between a 100 Volts and an 8 Ohms output. The blue power-LED and a five digit LED-VU-meter are informing you about the operational readiness and the output level of the 120 Watt powered mixer amplifier.

Modulation- and contact-controlled priority functions meet almost all requirements you need for microphone management. Of course you can also use these mixing amplifiers without any priority functions. A second 100 Volts-output is only active, when making an announcement for areas in which no background music shall be heard for instance. The mixer amplifier can be powered by a 24 V emergency power source.

The MX-AMP 120 is suitable for rack-mounting.

ic audio logo

MX-AMP 120

Technical Data (Electrical)

Description MX-AMP 120

Technical Data (Mechanical)

Dimensions 88x483x300 mm
Weight (net) 9,10 kg
Colour black

Product Attributes

ic audio logo

MX-AMP 120

ic audio loudspeakers are tested and classified according to the IEC standard 60529 (degree of protection by enclosure) against the penetration of foreign objects and moisture. The classification is conforming to standards through characterization with a fixed code. This code consists of the letters IP (International Protection) followed by two digits. The first digit indicates the degree of protection against dust and the second digit the degree of protection against water. Please note that the testing of the products has been carried out in laboratory conditions which are not always 100% comparable with the conditions of different installation environments. This protection can be reduced due to normal wear and tear depending on the installation environment.
RoHS compliant (2011/65/EU)
The IP rating specified is based on ic audio test results, not on CNBOP-PIB test results. Certification only verifies the minimum requirements for EN54-24 compliance.
