DA-S 10-130/T-EN54

DA-S 10-130/T-EN54

DA-S 10-130/T-EN54
  • quick Mounting
  • aluminium housing
  • BS 5839

EN 54-24:2008
Ref. Nr.: 002-13
ID-Code: SAA-LS02
1438/CPR/0234

ic audio GmbH, Boehringerstraße 14a,
D-68307 Mannheim, Germany

CE-Symbol gemäß Richtlinie 93/68EWG

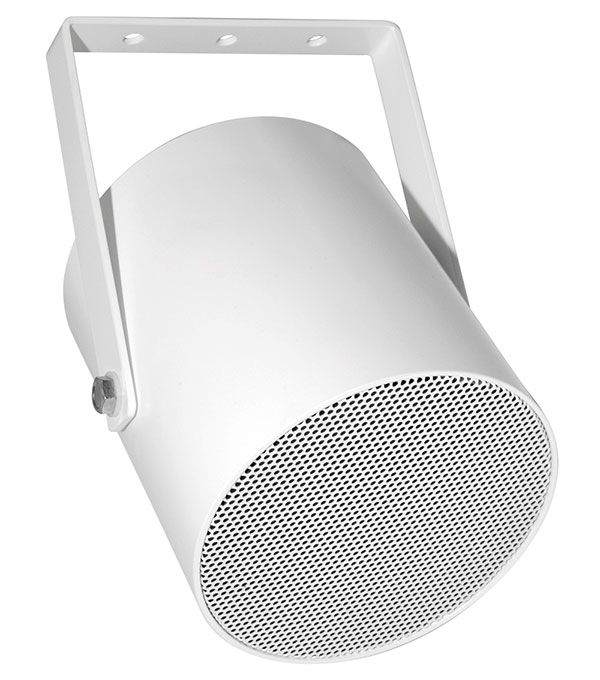

The 10W powered speaker is equipped with a 130mm full-range loudspeaker chassis and a 100V line transformer with 4 power adjustments. A robust powder coated aluminum housing in RAL 9010, and a solid mounting bracket ensures the permanent installation of this speaker. For additional reliability, a 2x2 pin-ceramic block and a thermal fuse is provided in a junction box and the speaker chassis is impregnated against wetness.

The speaker is also secured with the high protection class IP 65 against the risks of environmental influences.

The speaker is compliant with the British Standard BS 5839, Part 8.

Optionally available is a mast bracket (MB) for about 200mm mast diameter.

Special paint of the speaker in 4-digit RAL- or NCS- colour available at extra cost.

ic audio logo

DA-S 10-130/T-EN54

Technical Data (Electrical)
Description DA-S 10-130/T-EN54
Power 10/6/3/1,5 W
Frequency Range 900 - 8.800 Hz
Frequency Response 172 - 19.000 Hz
Sensitivity EN54-24, 1W/4m 77,6 dB
Dispersion -6dB, 500Hz 360°
Dispersion -6dB, 1KHz 201°
Dispersion -6dB, 2KHz 114°
Dispersion -6dB, 4KHz 51°

Technical Data (Mechanical)
Dimensions 167x163 mm
IP Rating IP65
Weight (net) 2,30 kg
Temperature Range -20 / +90 °C
Mounting Mounting bracket
Connector 2 x 2-pin ceramic block
Colour RAL 9010

Product Attributes
ic audio logo

DA-S 10-130/T-EN54

Technical Drawing

ic audio logo

DA-S 10-130/T-EN54

Frequency Response Diagram

Sensitivity
ic audio logo

DA-S 10-130/T-EN54

Isobar

ic audio logo

DA-S 10-130/T-EN54
ic audio loudspeakers are tested and classified according to the IEC standard 60529 (degree of protection by enclosure) against the penetration of foreign objects and moisture. The classification is conforming to standards through characterization with a fixed code. This code consists of the letters IP (International Protection) followed by two digits. The first digit indicates the degree of protection against dust and the second digit the degree of protection against water. Please note that the testing of the products has been carried out in laboratory conditions which are not always 100% comparable with the conditions of different installation environments. This protection can be reduced due to normal wear and tear depending on the installation environment.
RoHS compliant (2011/65/EU)
The IP rating specified is based on ic audio test results, not on CNBOP-PIB test results. Certification only verifies the minimum requirements for EN54-24 compliance.
